Please note! You may see extra products or the colour of your selection may not match the images shown. This is because we use real photos from our customers to maintain authenticity and transparency.
Reference: 42101-NPN

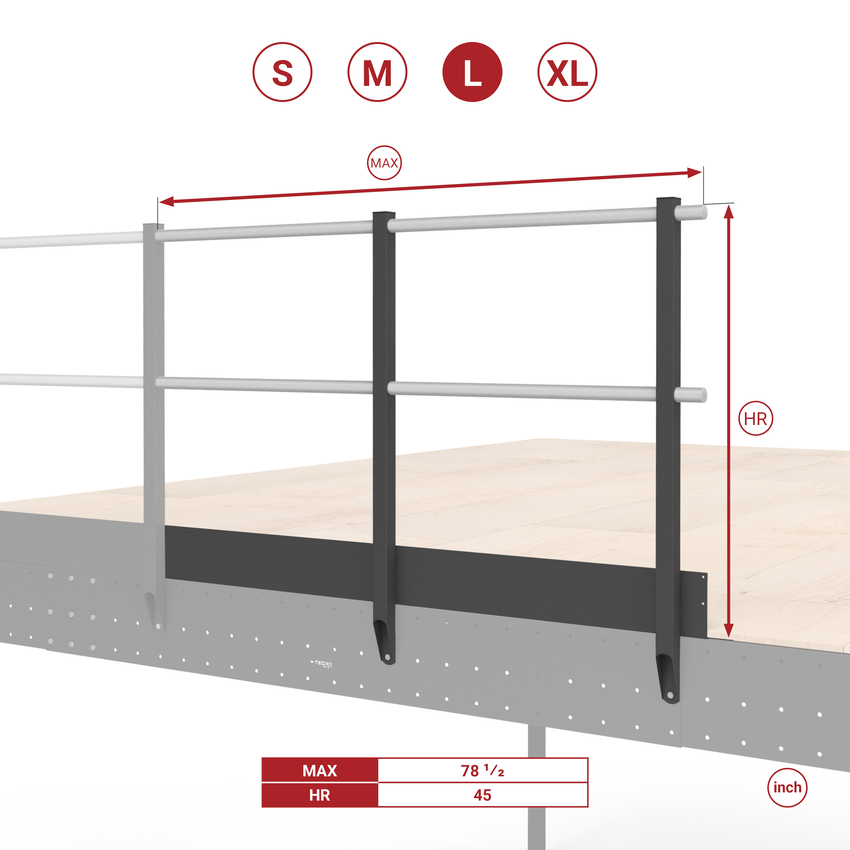

The extension is added to the initial railing flank to get 78 1/2" extra length. You can keep on adding as many extensions as needed to cover the desired length. You can include the corner elbows of handrail to join 2 different sides of the mezzanine.
Its features are the exact same as the Railing. It can be installed in any MezzaninesOnline structure belonging to M, L or XL ranges.
Really easy to install and safe. The kit includes steel posts, handrail, intermediary aluminium bar and safety skirting board 6" high, tube stoppers and screws.
Total length: 78 1/2" (Each side of the mezzanine, in which you want to install railing, needs an initial railing kit with 3 posts. The length can be reduced placing the posts closer to each other, and can be extended using the railing extension kits. The corners can be joint using the 2 corner elbows for railing kit).
XL range includes the adapters for the XL beam.
Check compatibility with other ranges or structures.
The products can be located indoors and outdoors taking into account some recommendations.
The material will be delivered at street level (curbside delivery) by an external transport company.
Tecro Space S.L. no se responsabiliza del posible uso ni instalación inadecuada del producto.
We do not currently offer an on-site measurement service. However, we recommend you explore the Mr Assembler website, where you can find assemblers who do offer this service. In addition, their platform allows you to hire an assembly service for the products you need.
No, they are not. However, there are other possible combinations between ranges, in which the performance and configuration of the standard product changes (see diagram).
The Railing with safety skirting board XL is the most recommended for installation on other surfaces.
(1) This configuration can be installed, but the height of the Railing would be different. In addition to reducing the height, the Angular Struts should also be changed. Ask TecroStar.
(2) To install this configuration you have to acquire 1 “Adapter for Accessories in Primary Beam XL Kit”, per Railing Post which is going to be installed on the direction of the primary beams of the TXL30, TXL32 and TXL37 Mezzanines.
(3) To use this configuration, the railings are fixed to the front of the floor slab or a different surface.This option is not recommended.
(4) To install this configuration you have to acquire 1 Angular Strut ( as the same range of the mezzanine) per Railing Post. Ask Mezzanines Online.
This is not recommended, as to cover a space with reduced height (i.e.: attics, irregular/low ceilings, etc.) we recommend installing the Low Railing instead. This particular railing model will allow the height of the railing posts to be adjusted to the client's taste.
That depends. The railing kits are 78 3/4" long. You will have to calculate how many kits you need.
The steel parts are coated with a highly adherent polyester paint coating using an electrostatic process. The colors and finishes available for the railings are as follows:
The handrail of the railings and stairs are available in aluminum in the following finishes:
The loft bed and rope railings are fitted with handrails made of solid natural beech wood. In the case of the spiral staircase railings, the handrails are available in black polyethylene or black rope.
This type of lacquer is perfect for indoor use. If you plan to install the mezzanine outdoors, we recommend consulting FAQ 22: Can I install a mezzanine outdoors? This section contains information and recommendations to consider in order to improve its performance and durability.
At MezzaninesOnline, we offer four types of boxes that are carefully designed to adapt to and protect the products. Depending on the products in your order, you will receive one or the other.
Mezzanine floors in the S, M and L range are shipped in the same type of box. The S and M mezzanines require one crate for each shipment. The L range, however, normally requires two crates.
The XL mezzanines are shipped in two boxes; one for the wooden elements and one for the steel elements.
The rest of the products (stairs, handrails and other items) are shipped in smaller boxes.
Type of box |
Length (inch) |
Width (inch) |
Height (inch) |
Box for S, M and L |
94 |
44 1/2 |
21 1/2 |
Wooden XL Box |
150 |
47 1/2 |
28 |
Iron XL box |
96 1/2 |
39 |
29 |
Small items box |
92 1/2 |
12 1/2 |
9 |
*All mezzanine crates are shipped palletised.
Our logistics department packs the products with great care to optimise the space available inside the boxes. Sometimes, smaller products may share a box with mezzanines. In this way we make the most of the space and ensure that everything fits correctly.
Don't be alarmed by the total weight of the product, the components are light and manageable, so you can move them easily and take them up in the lift. The heaviest components are the primary beams from the L range (86 lb), the rest of the ranges are considerably lighter (26.5 lb). The floor panels are very light and fit in any lift. No component is more than 94 1/2" long and therefore, fits in most lifts.
However, it is important to mention that in the case of the XL range, some components may be a little heavier.
The Railing is a modular railing, 43 1/2" high and up to two meters long, which can be installed in any of our mezzanines belonging to M, L or XL ranges.
Easy to install and safe. The Railing L kit includes steel posts, handrail, intermediary aluminium bar and safety skirting board 6" high, tube stoppers and screws.
2 union pieces of the circular handrails to the corners of the railing
The extension is added to the initial low railing flank to get 78 1/2" extra length. You can keep on adding as many extensions as needed to cover the desired length. You can include the corner elbows of handrail to join 2 different sides of the mezzanine.
Its features are the exact same as the low railing. Easy to install on any of our mezzanine or platform without works.
Extension that can be added to lengthen the S 4 Tubes Railing. Both products have compatible dimensions. This modular railing is very resistant and easy to install. Manufactured with top-quality materials, it is a perfect accessory for domestic use which, thanks to its four horizontal tubes, provides greater safety.
The extension is added to the initial security railing with plate flank to get 78 1/2" extra length. You can keep on adding as many extensions as needed to cover the desired length. You can include the corner elbows to join two different sides of the mezzanine.
The modular Railing extension is added to a pre-installed Railing in order to increase the overall railing length as both products have the same features. Intuitive installation. You can add as many extensions as you wish till the required length is achieved.
This extension is added to a pre-installed panel railing to extend its length. Both products are compatible as they have the same dimensions. Made of high-quality steel and combinable with different enclosure panels, providing elegance and safety to the structure. Modular railing: 31 1/2" high and up to 78 1/2" long.
The modular Rope Railing extension is added to a pre-installed railing in order to increase the overall railing length as both products have the same features. Intuitive installation. You can add as many extensions as you wish till the required length is achieved.
Extension that can be added to lengthen the Public Use Railing. Both products have compatible dimensions. The handrail for public use has been designed to provide extra safety thanks to its 110cm height and specific components. Manufactured with top-quality materials. Complies with French ERP standards.
The modular slat railing with plate extension is added to a pre-installed railing in order to increase the overall railing length as both products have the same features. Intuitive installation. You can add as many extensions as you wish till the required length is achieved.
