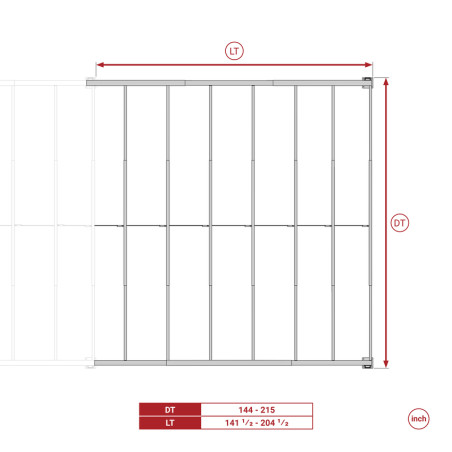

'A' Extension TL 30 allows you to enlarge the mezzanine on the same direction as primary beams; indeed, you needn’t dismantle the whole mezzanine.
You can get up to 646 ft² of mezzanine surface.

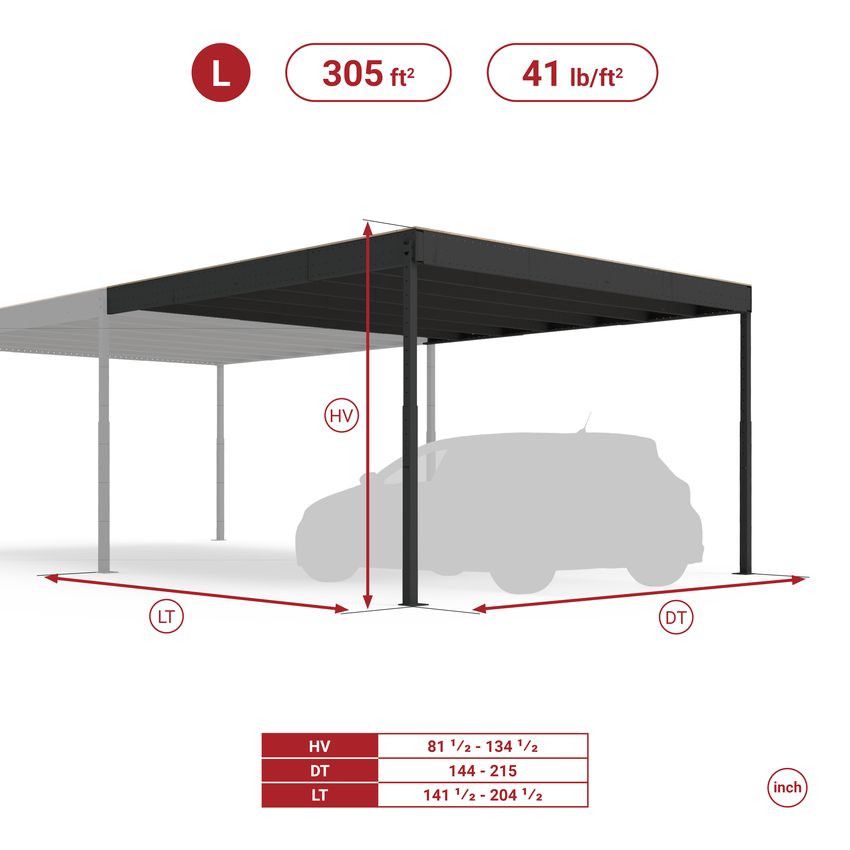

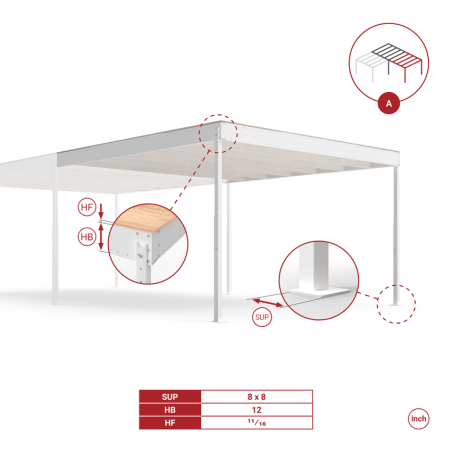

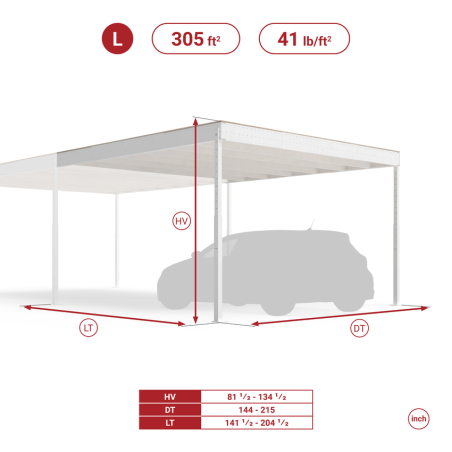

This KIT contains 2 height-adjustable columns, a lightweight frame with adjustable length and width. (extensible to 323 ft²) with the same characteristics as TL 30 structure and structural wooden board to cover the surface.
|Kind of product||Extensions kits|
|Maximum height above the flooring board (inch)||134 7/8|
|Minimum height above the flooring board (inch)||82 1/4|
|Height above the beam (inch)||81 1/2, 86 1/4, 91 1/4, 96, 100 3/4, 105 1/2, 110 1/4, 115, 119 3/4, 124 3/4, 129 1/2, 134 1/4|
|Beam height (inch)||11 3/4|
|Height-adjustable every (inch)||4 3/4|
|Width/Lenght-adjustable every (inch)||3 7/8|
|Maximum width (inch)||210 5/8|
|Minimum width (inch)||135 7/8|
|Maximum length (inch)||204 3/4|
|Minimum length (inch)||140 1/2|
|Maximum area (ft²)||312.15|
|Minimum area (ft²)||150.69|
|Total maximum load (Lb)||18739|
|Load capacity in its minimum extension (lb/ft²)||164|
|Load capacity in its maximum extension (lb/ft²)||61|
|Material and finish of the structure||Structural steel painted with powder coating|
Tecrostar mezzanines and stairs are supplied with everything you need to install the kit at its maximum surface area or height.
Personalised phone or email service from our specialists
Yes, you can add an extension to an existing mezzanine. You do not need to buy both structures at the same time.
No, the extension cannot be integrated and share columns. However, structures can be placed side by side and achieve continuity of the floor but you will not save any columns and there will be two columns together at the joints.
To install Tecrostar mezzanines you need 2 adults (they do not need to be DIY experts). It is recommendable to use personal safety equipment like gloves, boots, etc. in order to avoid accident.
When installing range L mezzanines you may need to use some type of scaffolding or ladder for working at heights and manual or electric lifting machinery to raise the primary beams, particularly if the structure is more than 3m high. The other ranges can be lifted easily by hand.
You will need the following tools to install the mezzanines: tape measure, some type of spanner for m10 and m8 bolts and a screwdriver (an electric screwdriver will make the task much easier), spirit level, drill and a tool for cutting the panels (saw, jigsaw, circular saw, etc.)
You can find all the tools required to assemble it and tested by Tecrostar in the tools section.
All the models are installed by following these steps:
Pre-assemble the structure on the floor in the desired area.
Raise the outer structure to the desired height.
Finish assembling the structure and floor.
You can do it yourself with the help of a friend. It is easily installed in a few hours, depending on the product.
TS8 Mezzanine: 3 hours with 2 people
TM15 Mezzanine: 4 hours with 2 people
TL30 Mezzanine: 5 hours with 3 people
The times are a guideline and for assembly only. You need to add the time it takes to measure up, move the components to the location, clean up, etc.
Sometimes, the carrier cannot access to point of delivery due to an extremely narrow street or any other difficulty. In such cases, the carrier cannot do the delivery with the usual truck and he may need to use a different vehicle or extra support. If the carrier considers that the point of delivery is complicated, request a quotation. If you don’t inform in advance that the access is complicated, the delivery will be paralysed until you pay the extra cost.
Tecrostar products are manufactured with the most suitable materials for the proposed technical solutions, combining wood, steel and top quality aluminium.
TECRO has earned certification from the AEM, the federation of Spanish materials handling. We have also received a Gold Medal Award of Merit from the INPEX (Invention and New Product Exposition), the top award for innovation at the largest Invention Exposition in the USA.
