Height between 92" and 150" – Mezzanines for industrial premises with immediate availability. They allow the use of hand pallet trucks and have a load capacity up to 225lb/ft².
The general access stairs S are adequate according to the regulations that lay down access and evacuation requirements with a great public concurrence, unlike other industrial or private stairs that are not as demanding.
These stairs are the suitable solution for the Tecrostar mezzanines belonging to the same range. It is adjustable in height and can be placed in different locations, thanks to its versatile upper anchor.

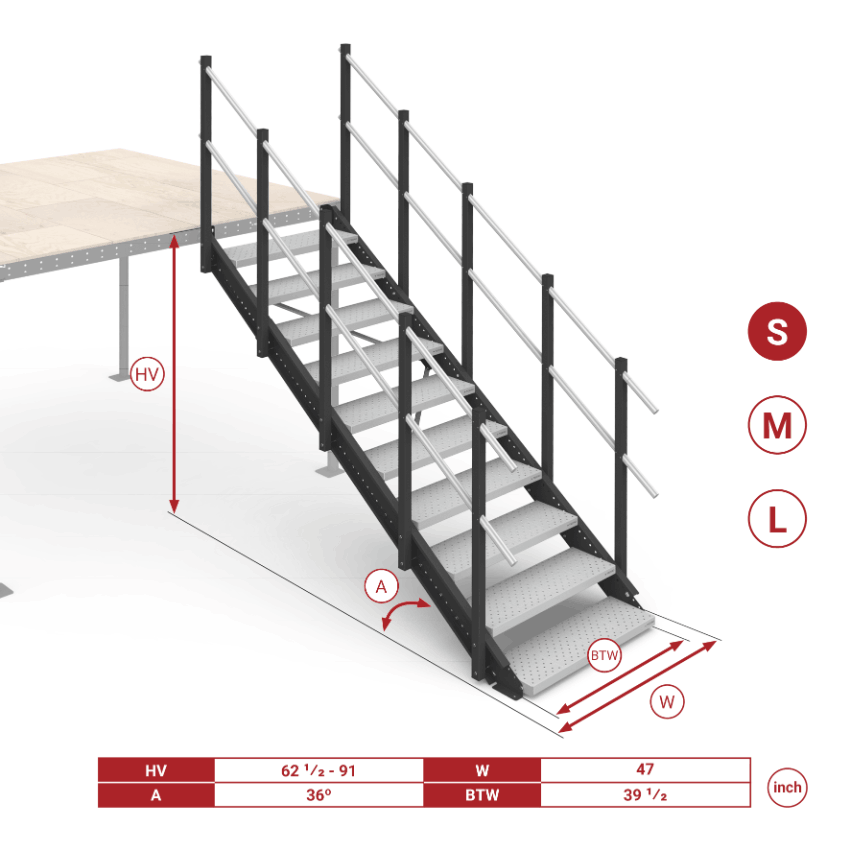

The stairs 36º are the ideal access element for the mezzanine because its height can be adjusted according to the dimensions selected by each customer.
For its assembly, it is necessary to have a height between 63 and 91 1/2" above the floor. The going is 10" and the height between steps is 7 1/2". The distance between the handrail tubes is 8".
The general access stairs S can be located inside the mezzanine to avoid it projecting beyond the mezzanine floor. It can be located in any of the sides as well, perpendicular or parallel to the structure using a stair landing.
Moreover, it allows to place more steps. In this case, Tecrostar recommends to maintain always the same distance between the steps to ease the transit through the stairs.
The products can be located indoors and outdoors taking into account
some recommendations.
The material will be delivered at street level (curbside delivery) by an external transport company.
Tecro Space S.L. is not responsible of the use or inadequate installation of the product.
The stairs can be placed in different positions, increasing the possible configurations
Exterior stairs, perpendicular to the mezzanine.
Interior stairs. You will need a beam for interior stairs.
Exterior stairs, parallel to the mezzanine. You will need a stair landing.
A different placement to our mezzanines.
Are the stairs compatible with different ranges?
Yes, provided that the height matches. All our stairs can be located in any of our structures. As the structures, the stairs are height-adjustable. We have several different types of stairs, to ensure the height compatibility with the selected mezzanine.
Can the stairs be placed outdoors?
Yes, our products can be installed outdoors,although you should bear in mind a series of special considerations and carry out maintenance of the material to guarantee that they are in good condition. See this section for more details
Can the stairs be anchored to a mezzanine or construction wall?
Yes. They can be installed on a surface that is not a Mezzanines Oniline surface.
The customer must bear in mind that they are responsible for the strength of the joint and structure to which they are anchored.
How are the stairs anchored to the top?
If you need to anchor the stairs to a structure that is not a MezzaninesOnline structure, see the following details about the anchors:
Anchor A: References that have this anchor: 30501, 30401, 31003, 31301, 31102
Anchor B: References that have this anchor:
Anchor C: References that have this anchor: 30601, 30801
Do they meet the building regulation and can they be used inside a house to access the 2 nd floor?
It depends on the use. The regulation is for stairs for common use and our stairs are for private use. Our stairs that comply are the 42nd: Long Stair M and L Stair
How can I turn the stairs up to allow the transit underneath them?
The anchor that joins the stairs to the mezzanine can attach the stairs with 4 or 2 screws. If you choose the configuration of just 2 screws, the stairs can pivot. In any case, the stairs have the same resistance.
Can the angle of inclination be changed?
Each model of stairs has an inclination and it cannot be changed unless otherwise stated. You must choose the stairs that best suit your needs.
Can I add extra steps?
The stairs include the maximum number of steps that are required in their maximum heights. The more the height is reduced, the less steps will be installed. However, you can acquire additional steps as spare parts, the number of steps is designed according to the inclination of each staircase though. An excessive number of steps would reduce the going available for treading, specially important when going down.
Can the railing of the stairs be taken off?
Yes, the railing of both sides of the stairs is removable and, therefore, it can be taken off. However, MezzaninesOnline recommends to install it for security and because they provide rigidity to the stairs as well.
On the other hand, the stairs include the railing; it is not possible to acquire them without the railing.
What are the dimensions and the weight of the stairs package?
For the orders that include just the stairs, the dimensions of the package are:
Length: 92 1/2"
Width: 12 1/2"
Height: 12 1/4"
The weight depends on the model of the stairs. Check the product sheet.
Can the spiral stairs be installed inside the mezzanine?
Check the the table with the specifications of each staircase to get this information.
Can I buy the stairs with just one side of railing?
No, you can’t.
How is it installed?
To install mezzanines you need 2 adults (they do not need to be DIY experts). It is recommendable to use personal safety equipment like gloves, boots, etc. in order to avoid accidents.
When installing range L mezzanines you may need to use some type of scaffolding or ladder for working at heights and manual or electric lifting machinery to raise the primary beams, particularly if the structure is more than 3m high. The other ranges can be lifted easily by hand.
You will need the following tools to install the mezzanines: tape measure, some type of spanner for m10 and m8 bolts and a screwdriver (an electric screwdriver will make the task much easier), spirit level, drill and a tool for cutting the panels (saw, jigsaw, circular saw, etc.)
All the models are installed by following these steps:
Pre-assemble the structure on the floor in the desired area.
Raise the outer structure to the desired height.
Finish assembling the structure and floor.
How is the product shipped and received?
The mezzanine floors are packed and shipped by an external agency in a lorry provided with a lifting platform, so that the boxes can be unloaded on the ground. The order will be delivered at street level to the address specified by the customer.
If there are access restrictions, there could be additional costs due to the necessity of transferring the merchandise to a smaller vehicle.
In order to deliver mezzanines XL, the delivery location should be accessible to a truck/long trailer. Should you think there is any kind of restriction, please contact us. The customer should take care of the merchandise unloading process. That unloading should be made from the lateral sides of the truck (this kind of truck does not have a back liftgate). We deliver the product packed with pallets at the bottom, so its unloading should be made preferably with a forklift.
How do I get the product up to my home?
Don't be alarmed by the total weight of the product, the components are light and manageable, so you can move them easily and take them up in the lift.The heaviest components are the primary beams from the L range (86 lb), the rest of the ranges are considerably lighter (26.5 lb).The floor panels are very light and fit in any lift. No component is more than 94 1/2" long and therefore, fits in most lifts.
However, it is important to mention that in the case of the XL range, some components may be a little heavier.
Quality of the materials
MezzaninesOnline products are manufactured with the most suitable materials for the proposed technical solutions, combining wood, steel and top quality aluminium.
The steels used for beams, columns and other components are fit for structural uses with a high yield strength (S235, S275 or S3555, as required). The pieces are manufactured using maximum precision laser cutting, folding and pressing processes. Next a powder coating is applied and they are baked in the oven, offering maximum adhesion and an outstanding finish.
Structure hardware grade 8.8
Anodized aluminum apt for outdoor use
The wood panels used for the mezzanine flooring can be made of European radiata pine plywood or high density structural chipboard. All the boards are tongue and groove on all four sides to prevent faults and unevenness at the joints of the modules.
Other wooden components, such as the steps and parts of the handrails, are made from top quality beech.
TECRO has earned certification from the AEM, the federation of Spanish materials handling. We have also received a Gold Medal Award of Merit from the INPEX (Invention and New Product Exposition), the top award for innovation at the largest Invention Exposition in the USA.
Delivery date
We deliver your order within an average of ten days. To ensure that you can enjoy your order as soon as possible, we ship all products by air.
Please note that there are external factors that may affect delivery time, such as inaccessible geographical locations, holidays, unforeseen weather conditions or customs procedures.
Please contact our International Trade department for delivery times for Alaska, Hawaii and other areas.
To determine the delivery date, it is important to understand the various stages your order goes through, as well as the dispatch and shipping time concepts.
- When we receive your order request, we review it to check the compatibility between products (ranges, colours...).
Once we can verify that everything is correct, your order gets APPROVED.
- As soon as we start preparing your order in the warehouse you will receive an automatic email. At this moment you can check that the status has changed to PROCESSING IN PROGRESS. This is when we carefully handle and package each product so that everything arrives in perfect condition.
Dispatch time corresponds to the period comprised from the order approval to the time this leaves our facilities, which depends on both our team and internal processes. We are committed to working towards keeping it to the possible minimum.
- When everything is PREPARED AND READY TO BE SHIPPED, we hand over your order to the transport agency and the order status changes to SHIPPED.
We will send you an email where you will find useful information and recommendations about the delivery process.
If you choose the waterproof or RAL personalised colour options, please note that the delivery of your order will take longer as metal parts will need additional treating or painting.
The public access stairs S are adequate according to the regulations that lay down access and evacuation requirements with a great public concurrence, unlike other industrial or private stairs that are not as demanding.
These stairs are the suitable solution for the Tecrostar mezzanines belonging to the same range. It is adjustable in height and can be placed in different locations, thanks to its versatile upper anchor.
The stairs 30º are the ideal access element for the mezzanine because its height can be adjusted according to the dimensions selected by each customer.
The Straight stairs are height-adjustable stairs suitable for access to the frame structure. They can also be used in other places, thanks to the very versatile anchorage system.
The Standard stairs with landing is formed by two straight telescopic flights that are connected by a central landing with a 90 degrees bend.
You can adjust both the run and the height to access Tecrostar structures of the L range, thanks to their versatile upper anchoring system and to the possibility of extending their first and second flights. They can also be used in different locations adapting to the desired height.
The standard stairs are height-adjustable to access Tecrostar structures. They can also be used independently in other places, thanks to the very versatile anchorage system. These stairs can be set up inside the mezzanine, using the beam for interior stairs, to increase the usable space and to avoid its extension beyond the mezzanine.
The public access stairs S are adequate according to the regulations that lay down access and evacuation requirements with a great public concurrence, unlike other industrial or private stairs that are not as demanding.
These stairs are the suitable solution for the Tecrostar mezzanines belonging to the same range. It is adjustable in height and can be placed in different locations, thanks to its versatile upper anchor.
The stairs 30º are the ideal access element for the mezzanine because its height can be adjusted according to the dimensions selected by each customer.

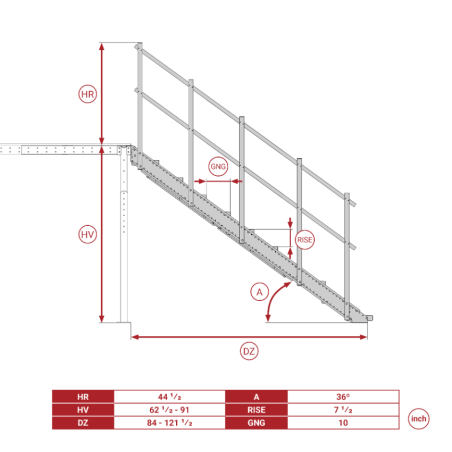

36º / The shadow of the stairs is 138% of the height.
Going (inch)
10 1/4
Height between steps (riser)
7 1/2
Material of the steps
Non-slip and evacuating galvanized steel (with 5/16 inch interior perforations)
Maximum load per step (Lb)
440
Uniformly distributed load (Lb/ft²)
440
Usable width (cm)
100
The general access stairs S are adequate according to the regulations that lay down access and evacuation requirements with a great public concurrence, unlike other industrial or private stairs that are not as demanding.
These stairs are the suitable solution for the Tecrostar mezzanines belonging to the same range. It is adjustable in height and can be placed in different locations, thanks to its versatile upper anchor.
