Industrial Mezzanine TXL 29

Reference: 23021-NA

Nobody has posted a review yet

The TXL29 is a mezzanine designed to support heavy loads and turn any industrial surface into a professional, elegant and versatile space.

$14,318.00

Quantity

Compare

Color : Black Yellow

Black Yellow
RAL personalized color on special request

In Stock

Free delivery

Only when total amount exceeds $2000.

We do deliver worldwide

Air shipments: fast and secure. We deliver your order within an average of 10 days.

Several methods of payment

Credit card, bank transfer, PayPal...

Special conditions for your business

Check the payment and financing facilities that we offer you.

Talk with a specialist. Call to +1 (646) 569 9048

Our technical department will resolve your doubts from Monday to Friday from 2am to 9am (ET).

Waterproof option

Learn all the benefits of this water-resistant treatment.

Description

This metallic and removable mezzanine allows the storage of heavy loads (for example, pallets up to 1102 lb., racks, stackers, safety gates and more useful elements) and enables the movement of hand pallet trucks on it. Its assembly is easy and there is no need of works.

You can get bigger mezzanines with several shapes using the extensions.

This mezzanine supports high point loads (*), considering that its load capacity varies from 1102 lb per square metre with its maximum dimensions. So, it allows you to place racks on it. By reducing the dimensions of the mezzanine, the permissible load per square metre increases considerably up to more than 2204 lb per square metre.

(*) The mezzanine supports point loads of 661 lb distributed on a 4"x 4" cm surface, provided that there is a minimum distance of 39 1/2" between them. The maximum load per rack unit should be defined according to that criteria. For any other point load, you can ask our technical department.

The flooring placed on the beams is formed by high-density structural boards 1 1/2" thick, P5 quality and waterproof. They have tongue and groove joints in their four sides so that there is not any failure or unevenness in the joints.

Our product is totally detachable and reusable. Therefore, it can be considered as movable property. This feature, always depending on each country’s current legislation, allows its use and installation with no need for planning permission.
The products can be located indoors and outdoors taking into account some recommendations.
Tecro Space S.L. is not responsible of the use or inadequate installation of the product.
There is a slight difference with the rest of the ranges. In order to deliver mezzanines XL, the delivery location should be accessible to a truck/long trailer (maximum mass admitted up to 36t). If there are access restrictions for this kind of truck, there could be additional costs due to the necessity of transferring the merchandise to a smaller vehicle. Should you think there is any kind of restriction, please contact us.
The customer should take care of the merchandise unloading process. That unloading should be made from the lateral sides of the truck (this kind of truck does not have a back liftgate).
We deliver the product packed with pallets at the bottom, so its unloading should be made preferably with a forklift.

Data sheet

Reference 23021-NA

Kind of product: Only Mezzanine
Range: XL
Compatibility: XL

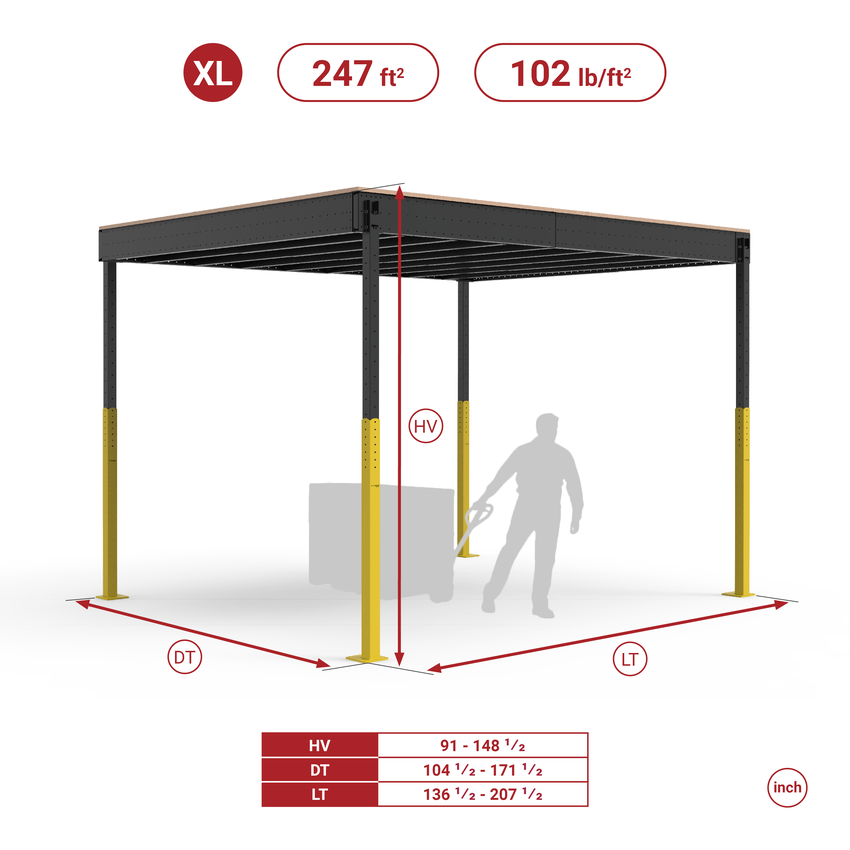

Height above the beam (inch) (HV): 91 1/4 · 93 1/2 · 96 · 98 1/2 · 100 3/4 · 103 · 105 1/2 · 108 · 110 1/4 · 112 1/2 · 115 · 117 1/2 · 119 3/4 · 122 · 124 3/4 · 127 · 129 1/2 · 132 · 134 1/4 · 136 1/2 · 139 · 141 1/4 · 143 3/4 · 146 · 148 1/2
Total height (inch) (HT): [HV] + [HF]
Height-adjustable every (inch): 2 1/2
Total maximum load (Lb): 25328

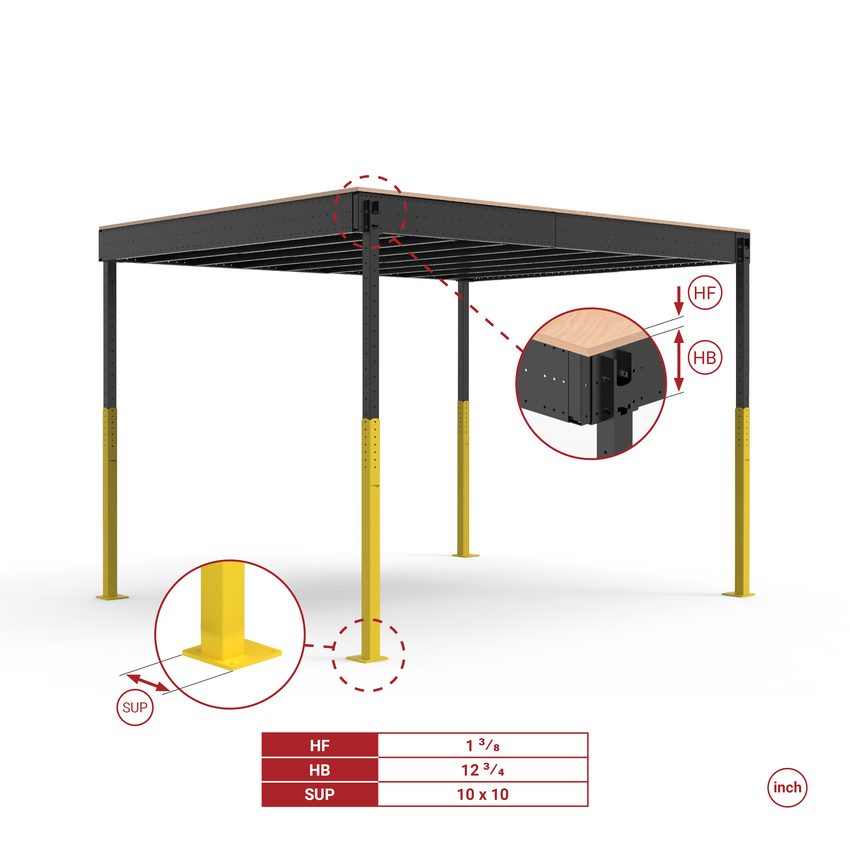

Beam height (inch) (HB): 12 3/4
Width/Length-adjustable every (inch): 4

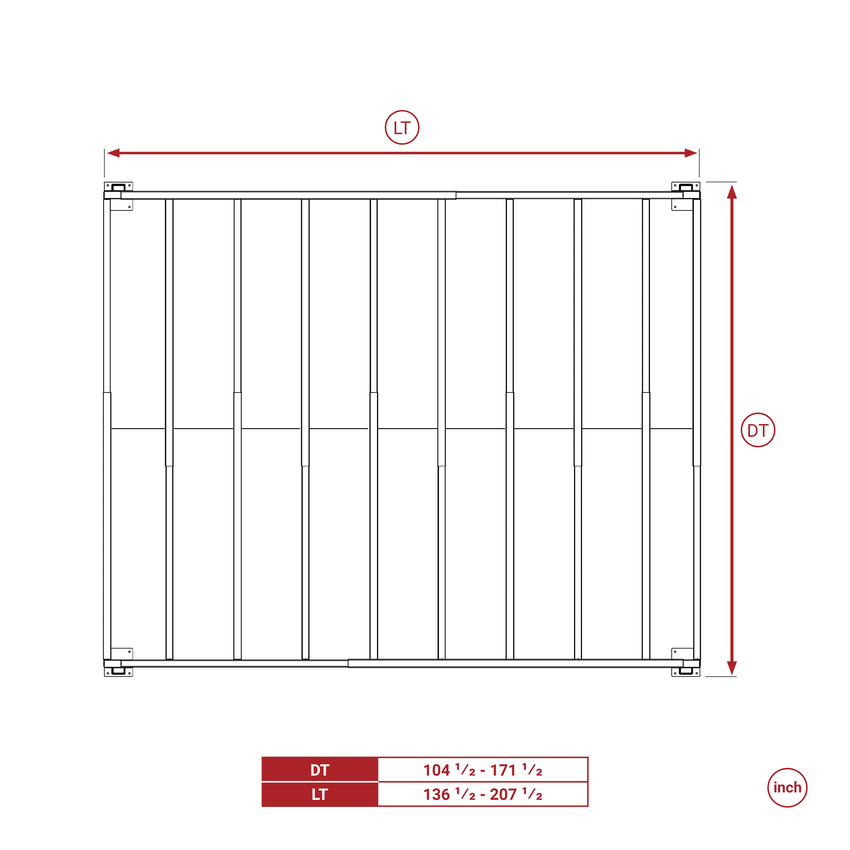

Maximum length of the primary beam (inch) (LT): 207 1/2
Minimum length of the primary beam (inch) (LT): 136 1/2
Maximum length of the secondary beam (inch) (DT): 171 1/2
Minimum length of the secondary beam (inch) (DT): 104 1/2
Maximum area (ft²): 247.35
Minimum area (ft²): 93.65
Load capacity in its minimum extension (lb/ft²): 245
Load capacity in its maximum extension (lb/ft²): 102.4
Flooring (HF): High-density structural chipboard with P5 quality, tongue and groove joints in its four edges and 1 1/2" of thickness.
Material and finish of the structure: Structural steel painted with powder coating
Net weight (Lb): 1348
Gross weight (with packaging) (Lb): 1441
Maximum height above beam (inch) (HV max): 148 1/2
Minimum height above beam (inch) (HV min): 91 1/2
Clear height (inch) (HL): [HV] - [HB]
Floor thickness (inch) (HF): 1 1/2

FAQs

General

Do I have technical support for my project?

Our technical team can facilitate you the task. Send us a sketch with your idea and we will develop 2d or 3d plans in order to see how it will be. Click here to contact us.

Can someone come to measure or advise me?

We do not currently offer an on-site measurement service. However, we recommend you explore the Mr Assembler website, where you can find assemblers who do offer this service. In addition, their platform allows you to hire an assembly service for the products you need.

Can I install MezzaninesOnline products outdoors?

Guide for Outdoors

Can I install a Tecrostar product making modifications of it?

You can make aesthetic modifications, but any structural modification non approved by Mezzanines Oniline will be under customer’s responsibility.

Do I have to ask for a building permit or license to assemble my mezzanine?

No, you don’t. Our products are completely removable and reusable, therefore, they are considered as PERSONAL PROPERTY.

The mezzanines with an industrial usage require neither a building license for their assembly nor meeting the maximum constructed surface limits of the pavillion. As they are removable and hence personal property, they are subject to the same legal regime as the machinery, the racks, the vehicles, etc.

Quality of the materials

MezzaninesOnline products are manufactured with the most suitable materials for the proposed technical solutions, combining wood, steel and top quality aluminium.

The steels used for beams, columns and other components are fit for structural uses with a high yield strength (S235, S275 or S3555, as required). The pieces are manufactured using maximum precision laser cutting, folding and pressing processes. Next a powder coating is applied and they are baked in the oven, offering maximum adhesion and an outstanding finish.
Structure hardware grade 8.8
Anodized aluminum apt for outdoor use
The wood panels used for the mezzanine flooring can be made of European radiata pine plywood or high density structural chipboard. All the boards are tongue and groove on all four sides to prevent faults and unevenness at the joints of the modules.
Other wooden components, such as the steps and parts of the handrails, are made from top quality beech.

TECRO has earned certification from the AEM, the federation of Spanish materials handling. We have also received a Gold Medal Award of Merit from the INPEX (Invention and New Product Exposition), the top award for innovation at the largest Invention Exposition in the USA.

Mezzanines

Which mezzanine is the right for me?

The key to choosing the right mezzanine is to be sure of how you will be using it.

If you want to use it at home, whether in a cosy bedroom, in a relaxing living room or in a garage to create extra space, you should consider the S or M ranges. The mezzanine of these ranges allow you to create a raised area between 63" to 10 3/4" high.

If you want to extend a commercial space, add a balcony to your garden or create a second storey warehouse or a large garage, we recommend the L mezzanines. From 82 1/4" to 134 5/8" high.

XL mezzanines are for larger projects. For example, you can fit out industrial premises or increase your company's productivity and storage capacity. These mezzanines range in height from 92 1/2" to 149 1/2".

Once you know how you want to use your mezzanine, the next step is to fine-tune the details such as height, area and load capacity so that it fits your project perfectly. You can also add stairs, railings and other accessories.

More than one mezzanine suits my needs, which should I choose?

We might have various models of mezzanine that meet the dimensions you need. In this case, follow these criteria:

1- Load-bearing capacity

2- Maximum span (distance between columns)

3- Beam height

4- Height of the mezzanine above the decking you need

I need more surface, what solutions are there?

You can increase the surface using the extension kits. Get these kits at the same time as your mezzanine or in the future, when you need more space.

These kits are height-adjustable as well and allow to multiply the surface of our mezzanine.

Is it a customised mezzanine? How does the system work?

No, it is not a customised mezzanine but its telescopic design enables an almost customised finish. This system is length, width and height adjustable, achieving the preferred measurements.

The mezzanine can be adjusted from its minimum values to its maximum values at these intervals.

A: adjustable every 4 3/4"

B: adjustable every 3 7/8"

C: adjustable every 3 7/8"

Does the kit include the flooring boards?

Yes, the mezzanine floor is included.

For the S, M and L ranges we use 1/2" pine plywood structural panels, with tongue and groove joints on all four sides.

In the XL range, we use P5 HYDRO high-density particle board structural panels, with tongue and groove joints on all four sides and 3/4" thick.

If you want to install your mezzanine outdoors and take care of the floor, we recommend installing the Outdoor Decking. This product is placed over the flooring of the mezzanine, making it a suitable option for outdoor use. It is the ideal waterproof solution to protect the wood flooring and prolong the life of your outdoor mezzanine. In this way, you can create multifunctional spaces such as pergolas, porches, terraces or carports.

Is there any other alternative to the wooden floor?

No. Mezzanines Online does not have a different flooring alternative. However, it is possible to personalize the finish of the floor by adding some accessories on the boards (carpet, platform,...). Check our floor finishes in accessories section. If the customer installs a different floor from the boards provided, it is their responsibility to ensure the resistance of the full mezzanine, since the floor contributes to the stability of the whole.

Can I close the mezzanine with plasterboards?

Plasterboard is a low density material, so you can make a closing wall on top of the mezzanine. You can also close the lower part of the mezzanine when mezzanine is indoors. When this closing wall is made in mezzanines installed in the exterior, you should consult Mezzanines Online, since lateral wind load can cause the structure needs stability kits.

Can I have two heights?

No, you can’t. At the moment, our mezzanines are available just for a single height although some customers install them on another existing mezzanine. In that case, the resistance of the existing one should be checked.

Can I install a mezzanine on a sloping floor?

Yes. Provided that the inclination is small, we can use a wedge under the mezzanine columns to level it. If the inclination is too small it might be not necessary at all and the slope might be imperceptible.

Is it possible to install at a lower or higher height than indicated?

Yes, it is possible to reduce the height but not to increase the maximum position.

To reduce the height of S and M mezzanines, you can ask the technical department for a type of short column. With their use the telescopic and adjustable system is maintained, but the maximum and minimum positions of the structure are reduced.

Depending on how short the mezzanine needs to be, the customer may have to make a simple cut on these columns.

To reduce the height of L and XL mezzanines, a special cut must be made. You can order this cut from MezzaninesOnline and we will send you a personalized quotation.

Installation

Can the mezzanine be installed without columns or removing a column? Attached to walls

No, our mezzanines are sold with columns by default. We cannot guarantee the resistance of walls or corbels and the customer will be responsible if the product is modified in these cases.

What are the steps and materials required to install a mezzanine?

At least two adults are required to install a mezzanine, (they do not need to be DIY professionals). It is recommended to use safety equipment such as gloves, boots, etc., to avoid any accidents.

For the mezzanine floors in the L and XL range, a scaffolding or ladder system may be required for work at height and manual or electric lifting equipment for the primary beams, especially if the structure is over 3 m high. All other ranges are easily lifted by hand.

You will need the following tools to install the mezzanines: tape measure, a spanner set for nuts and bolts and a screwdriver (an electric screwdriver makes the job much easier), a spirit level, hammer, drill and a cutting tool for the board (handsaw, jigsaw, circular saw...).

This video shows you how to install a TM 15 mezzanine.

Can I install the mezzanine in my apartment? Will the structural floor bear the weight?

Yes. As they are manufactured with light steel profiles with a high yield point they are very light and the load per column is very low. The only restriction is the storage load on the mezzanine: instead of 40.96lb/ft², it may be reduced to 1764lb for the whole mezzanine.

A home with a concrete structure usually supports a point load of at least 441lb on a surface of 2x2". The T8 mezzanine weighs 439lb and the T15 mezzanine weighs 785lb, both weights are distributed over 4 columns.

You can install either of these two metal mezzanines in your home, provided that the load stored on them is limited. Ask MezzaninesOnline about the specific features of your project.

How long does it take to install a mezzanine on my own?

You can do it yourself with the help of a friend. It is easily installed in a few hours, depending on the product. The times are a guideline and for assembly only. You need to add the time it takes to measure up, move the components to the location, clean up, etc.

S Range: 4-6 hours with 2 people

M Range: 8-10 hours with 2 people

L Range: 15-22 hours with 2 people

XL Range: 25-28 hours with 2 people

The time required for fitting accessories (ladders, handrails...) could vary between 2-8 hours depending on the quantity, as well as the type/model of accessory.

How can I find and hire an installer for Tecrostar products?

You can find an fitter near you on misterassembler.com. This website puts fitters and customers in contact, so the price and the responsibility of the installation is the fitter's. This website is not associated with MezzaninesOnline.

MezzaninesOnline can provide you with an estimate of the cost of assembly that depends largely on the distance between the assembly team and the installation site and the type of service hired (prior visit and measuring, delivery service and transport of goods to the site).

In any case, this estimate must be agreed between the client and the fitter.

Shipping

How is the product shipped and received?

The mezzanine floors are packed and shipped by an external agency in a lorry provided with a lifting platform, so that the boxes can be unloaded on the ground. The order will be delivered at street level to the address specified by the customer.

If there are access restrictions, there could be additional costs due to the necessity of transferring the merchandise to a smaller vehicle.

In order to deliver mezzanines XL, the delivery location should be accessible to a truck/long trailer. Should you think there is any kind of restriction, please contact us. The customer should take care of the merchandise unloading process. That unloading should be made from the lateral sides of the truck (this kind of truck does not have a back liftgate). We deliver the product packed with pallets at the bottom, so its unloading should be made preferably with a forklift.

How is the package and what are its dimensions?

At MezzaninesOnline, we offer four types of boxes that are carefully designed to adapt to and protect the products. Depending on the products in your order, you will receive one or the other.

Mezzanine floors in the S, M and L range are shipped in the same type of box. The S and M mezzanines require one crate for each shipment. The L range, however, normally requires two crates.

The XL mezzanines are shipped in two boxes; one for the wooden elements and one for the steel elements.

The rest of the products (stairs, handrails and other items) are shipped in smaller boxes.

Type of box	Length (inch)	Width (inch)	Height (inch)
Box for S, M and L	94	44 1/2	21 1/2
Wooden XL Box	150	47 1/2	28
Iron XL box	96 1/2	39	29
Small items box	92 1/2	12 1/2	9

*All mezzanine crates are shipped palletised.

Our logistics department packs the products with great care to optimise the space available inside the boxes. Sometimes, smaller products may share a box with mezzanines. In this way we make the most of the space and ensure that everything fits correctly.

What if the access to the delivery address is complicated?

Sometimes, the carrier cannot access to point of delivery due to an extremely narrow street or any other difficulty. In such cases, the carrier cannot do the delivery with the usual truck and he may need to use a different vehicle or extra support.

If the carrier considers that the point of delivery is complicated, request a quotation. If you don’t inform in advance that the access is complicated, the delivery will be paralysed until you pay the extra cost.

Is the XL range delivered differently?

There is a slight difference with the rest of the ranges. In order to deliver mezzanines XL, the delivery location should be accessible to a truck/long trailer (maximum mass admitted up to 36t). If there are access restrictions for this kind of trucks, there could be additional costs due to the necessity of transferring the merchandise to a smaller vehicle. Should you believe it exists any kind of restriction, please contact us.

The customer should take care of the merchandise unloading process. That unloading should be made from the lateral sides of the truck (this kind of truck do not have back liftgate).

We deliver the product packed with pallets at the bottom, so its unloading should be made preferably with a forklift.

Telescopic system

Column Protection

The Column Protection is a security element that protects the columns of the mezzanine against impacts they can receive from the machinery being used near the structure as well as forklifts or pallet trucks.

It is formed by 4 independent pieces that are screwed together, forming a set that surrounds the column for its protection. It is installed around the base plate of the column using concrete anchors. Only two or three pieces can also be installed, for such occasions where the column is against the walls.

$370.00

View product

Compare

The Safety Pallet Gate, also known as Anti-fall tilting barrier, is a collective security and protection element. Its use is mandatory according to the labour risk prevention regulations. It avoids the people falling while lifting loads to a mezzanine or to any other level.

It works as a rocker: the merchandise is deposited in a position using a forklift and taken away in the other position from inside the mezzanine. This way, one of the railing sides is always closed, avoiding falling to a different level with no need to use harness.

The dimensions of the maximum load to deposit and the dimensions of the gate itself depend on the model, as shown in the main image.

$1,938.00

View product

Compare

(5/5) on 1 rating(s)

Skylight

Allows the light through to the lower part of the mezzanine and it also permits to walk on it.

It is really easy to install. You just have to make a hole in the desired position of the floor of your mezzanine and, after that, place both the frame and the glass.

$59.00

View product

Compare

16 other products in the same category:

The mezzanine TXL37 is highlighted for its industrial load capacity. Its distance between the columns is higher than 6 meters and the telescopic system of the beams and columns make it the best option for big surfaces and warehouses.

$21,487.00

View product

Compare

Industrial Mezzanine TXL 32

The TXL32 is a metallic and removable mezzanine that allows the stock of heavy loads. Its greatest advantage is that you can acquire it no waiting for quotes, measurements and technical drawings.

$16,889.00

View product

Compare

'AB' Extension TXL 37

The extension modules have very similar load capacity, dimensions and surface area to those of the initial module.

$19,520.00

View product

Compare

The extension modules have very similar load capacity, dimensions and surface area to those of the initial module.

$16,975.00

View product

Compare

'AB' Extension TXL 32

The extension modules have very similar load capacity, dimensions and surface area to those of the initial module.

$14,983.00

View product

Compare

“A” Extension TXL 29

The extension module "A" allows the extension of the mezzanine in the direction of the primary beams, without the need to dismantle the existing mezzanine.

The extension modules have very similar load capacity, dimensions and usable area to those of the initial module.

$12,833.00

View product

Compare

“A” Extension TXL 30

The extension module "A" allows the extension of the mezzanine in the direction of the primary beams, without the need to dismantle the existing mezzanine.

The extension modules have very similar load capacity, dimensions and usable area to those of the initial module.

$17,249.00

View product

Compare

Reviews

Be the first to write your review !

Cookie name	Provider	Purpose	Expiry
cookiesplus	www.mezzaninesonline.com	Stores your cookie preferences.	1 year
PHP_SESSID	www.mezzaninesonline.com	This cookie is native to PHP and enables websites to store serialised state data. It is used to establish a user session and to pass state data via a temporary cookie, which is commonly referred to as a session cookie.	Session
PrestaShop-#	www.mezzaninesonline.com	This cookie helps keep user sessions open while they are visiting a website, and help them make orders and many more operations such as: cookie add date, selected language, used currency, last product category visited, last seen products, client identification, name, first name, encrypted password, email linked to the account, shopping cart identification.	6000 hours
test_cookie	Doubleclick.net	Check for cookies user permission	15 minutes

Cookie name	Provider	Purpose	Expiry
AEC	Google	‘AEC’ cookies ensure that requests within a browsing session are made by the user, and not by other sites. These cookies prevent malicious sites from acting on behalf of a user without that user’s knowledge	2 years
arlsf_c	Live Sales Popup	Sales popup user tracking	Session
arlsf_key	Tecrostar	Sales popup user tracking	1 day
SOCS	Google	Store user cookie choices	13 months
__Secure-ENID	Google	Builds a profile of website visitor interests to show relevant and personalized ads through retargeting.	2 years

Cookie name	Provider	Purpose	Expiry
_hjSessionUser_#	Hotjar	Hotjar cookie that is set when a user first lands on a page with the Hotjar script. It is used to persist the Hotjar User ID, unique to that site on the browser. This ensures that behavior in subsequent visits to the same site will be attributed to the same user ID.	1 year
_hjSession_#	Hotjar	A cookie that holds the current session data. This ensures that subsequent requests within the session window will be attributed to the same Hotjar session.	session

Cookie name	Provider	Purpose	Expiry
twk_*	Tawk	Tawk session data	Session
twk_uuid_*	Tawk	Tawk session data	At least one session
_gcl_au	Google	It takes information in ad clicks and stores it in a first-party cookie so that conversions can be attributed outside the landing page.	Persistent

Cart

Small

Comparison S

Medium

Comparison M

Large

Comparison L

Extra Large

Comparison XL

Mezzanines

Stairs

Railings

Accesories

Single parts

Outlet

Gallery

MEZZANINES

SMALL

MEDIUM

LARGE

INDUSTRIAL XL

STAIRS

REDUCED SPACES

EASILY ACCESIBLE STAIRS

FOLDING STAIRS

STAIR LANDING

BEAM FOR INTERIOR STAIRS

RAILINGS

STANDARD

SECURITY

LOW

EXTENSIONS

LOADING GATES

STAIRS

Real photos of our customers

MO Gallery

Are you looking for an installer?

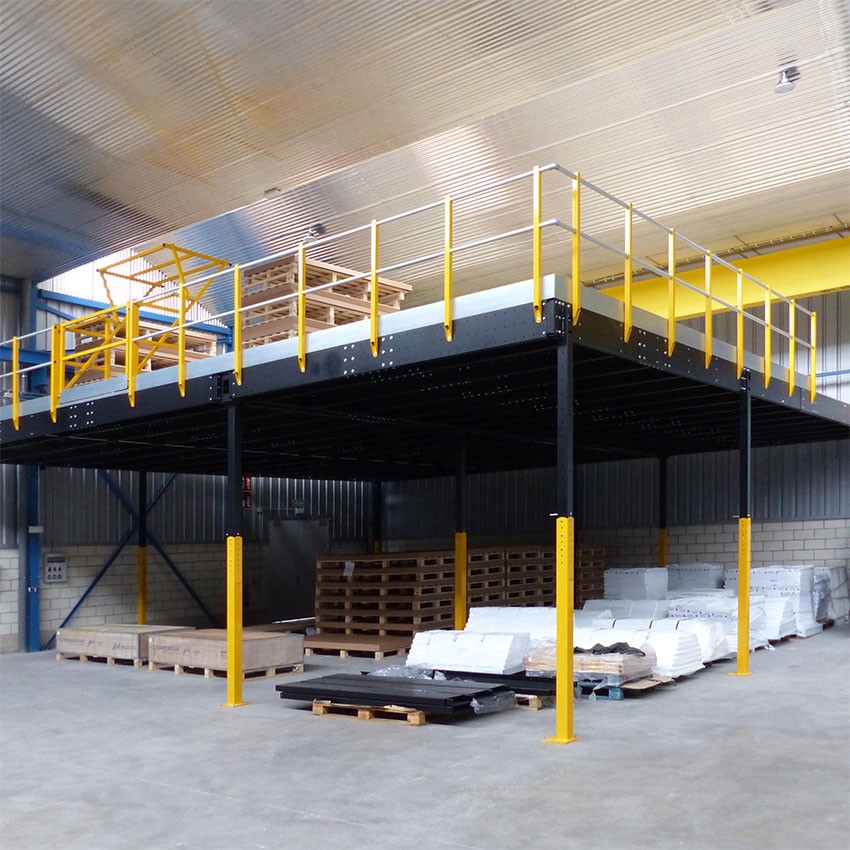

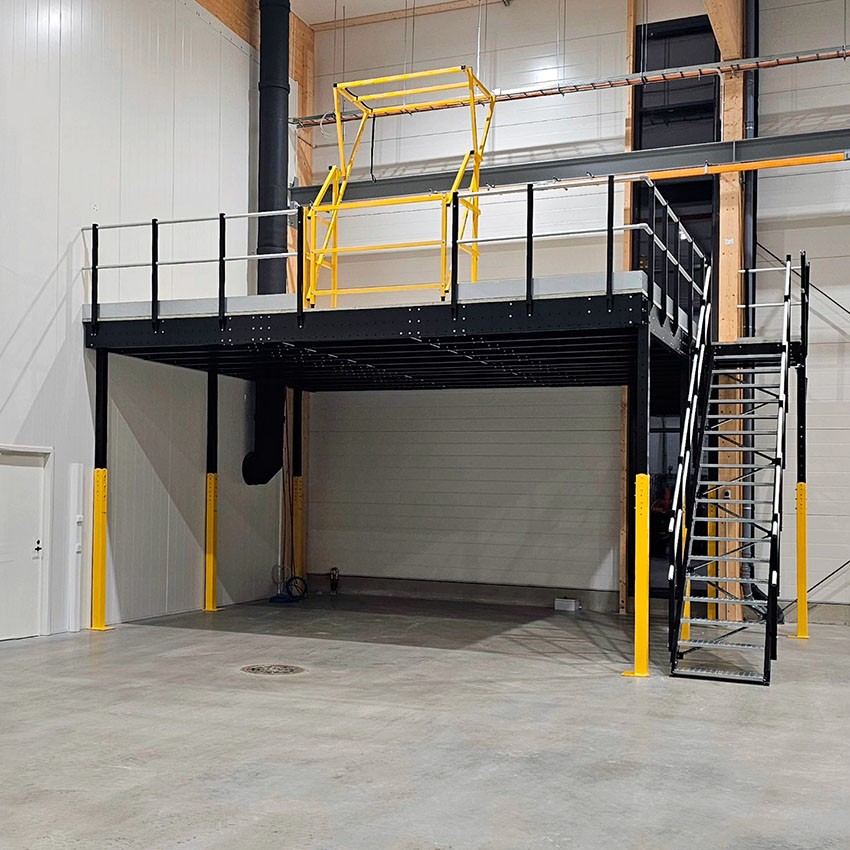

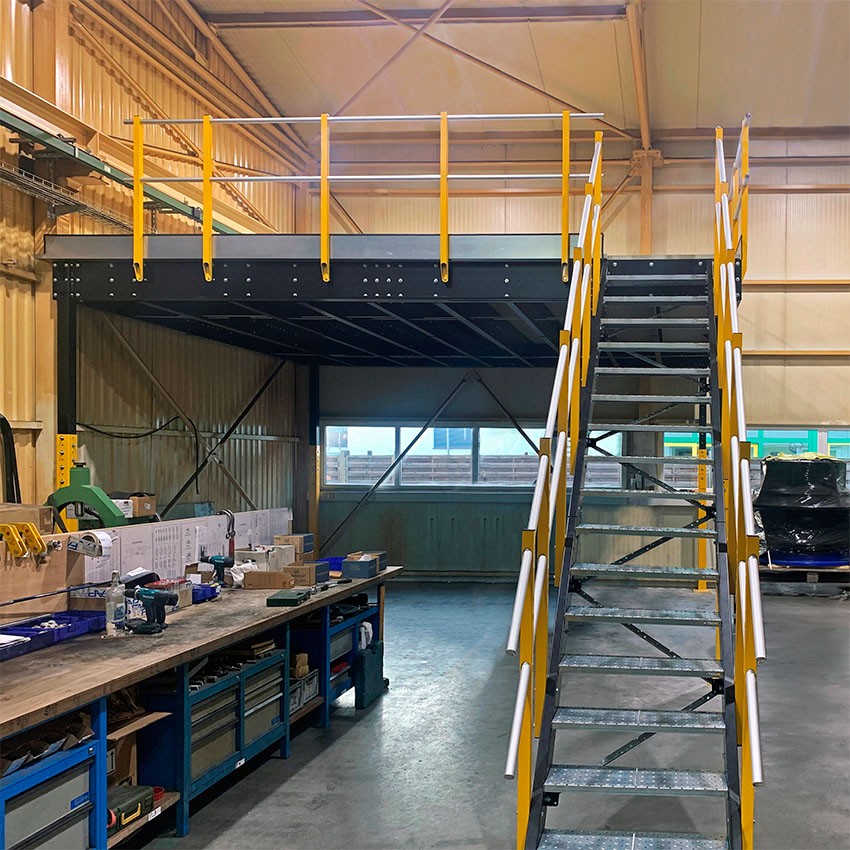

Industrial Mezzanine TXL 29

Free delivery

We do deliver worldwide

Several methods of payment

Special conditions for your business

Talk with a specialist. Call to +1 (646) 569 9048

Waterproof option

General

Mezzanines

Installation

Shipping

You might also like

16 other products in the same category:

Categories

Information
