This metallic and removable mezzanine allows the storage of heavy loads (for example, pallets, racks, stackers, safety gates and more useful elements) and enables the movement of hand pallet trucks on it. Its assembly is easy and there is no need of works.
You can get bigger mezzanines with several shapes using the extensions.
This mezzanine supports high point loads (*), considering that its load capacity varies from 102lb per square feet with its maximum dimensions. So, it allows you to place racks on it. By reducing the dimensions of the mezzanine, the permissible load per square metre increases considerably up to more than 200lb per square feet.
(*) The mezzanine supports point loads of 660lb distributed on a 4" x 4" surface, provided that there is a minimum distance of 39" between them. The maximum load per rack unit should be defined according to that criteria. For any other point load, you can ask our technical department.

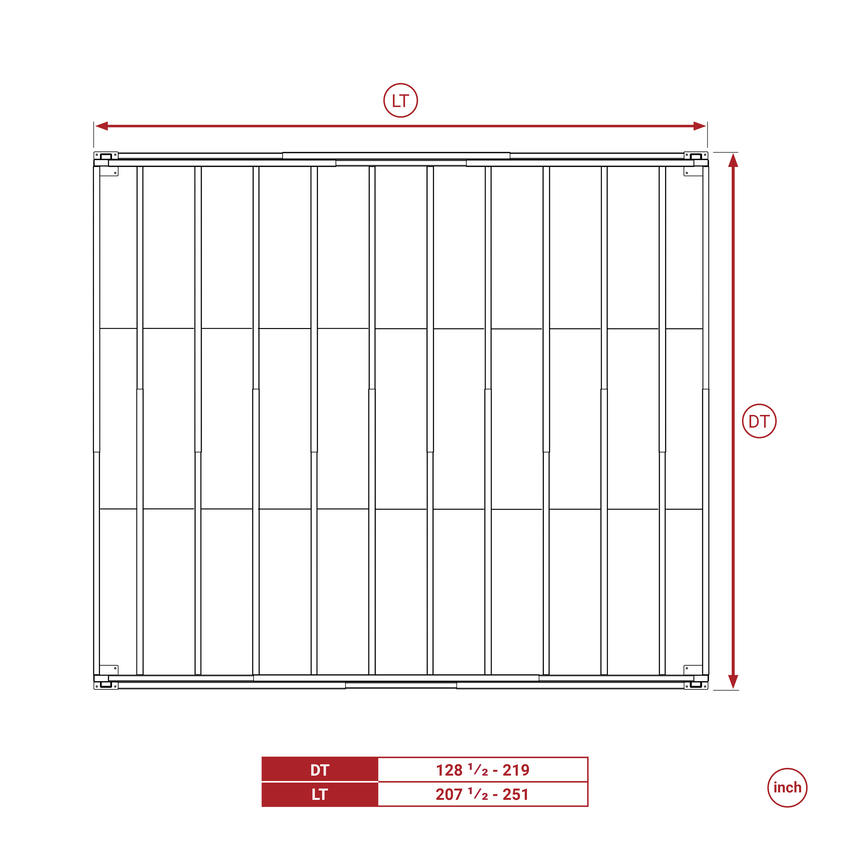

The flooring placed on the beams is formed by high-density structural boards 0,13" thick, P5 quality and waterproof. They have tongue and groove joints in their four sides so that there is not any failure or unevenness in the joints.
-
Our product is totally detachable and reusable. Therefore, it can be considered as movable property. This feature, always depending on each country’s current legislation, allows its use and installation with no need for planning permission.
-
The products can be located indoors and outdoors taking into account
some recommendations.
-
Tecro Space S.L. is not responsible of the use or inadequate installation of the product.
-
There is a slight difference with the rest of the ranges. In order to deliver mezzanines XL, the delivery location should be accessible to a truck/long trailer (maximum mass admitted up to 36t). If there are access restrictions for this kind of truck, there could be additional costs due to the necessity of transferring the merchandise to a smaller vehicle. Should you think there is any kind of restriction, please contact us.
-
The customer should take care of the merchandise unloading process. That unloading should be made from the lateral sides of the truck (this kind of truck does not have a back liftgate).
-
We deliver the product packed with pallets at the bottom, so its unloading should be made preferably with a forklift.
